Plinth Beam Steel Calculation

Plinth Beam Steel Calculator – Complete Guide

Plinth beam steel calculation is the process of estimating the total reinforcement required in a plinth beam including top bars, bottom bars and stirrups. Accurate plinth beam steel calculation helps engineers, contractors and students determine the correct quantity of steel required for safe and economical construction.

Plinth beams are constructed at ground level between columns to support masonry walls and distribute loads evenly to the foundation. Proper reinforcement design and calculation ensure structural stability, crack control and long-term durability.

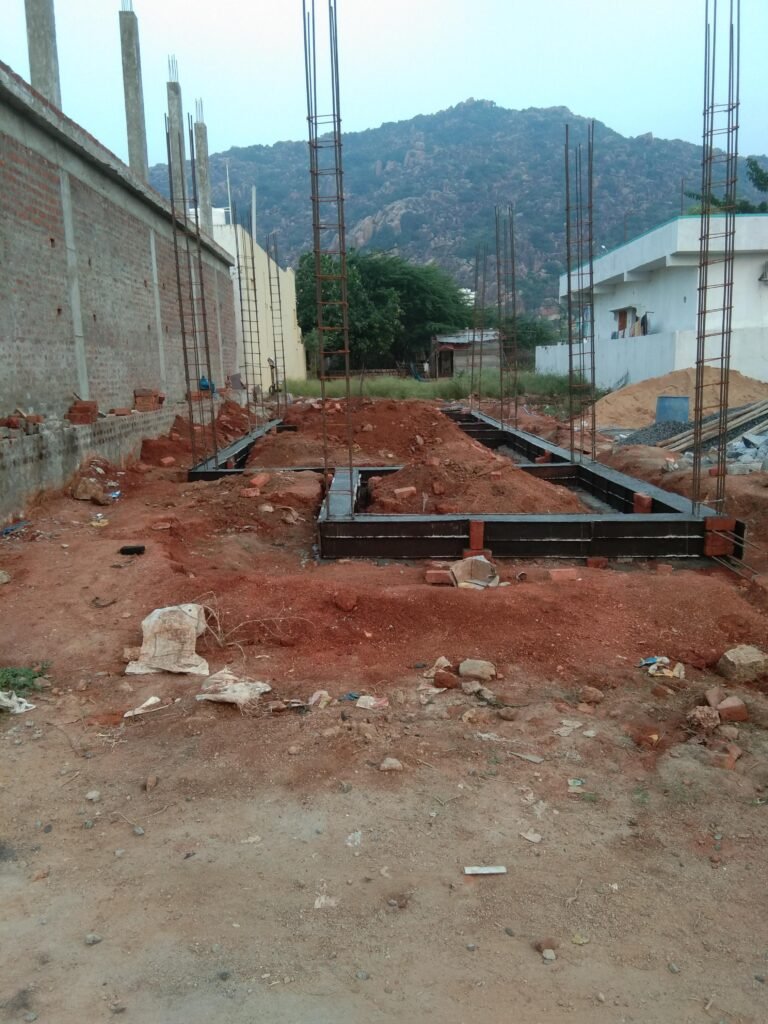

What is a Plinth Beam?

A plinth beam is a reinforced concrete beam provided at ground level above the foundation. It connects all columns and supports wall loads.

Main purposes of a plinth beam:

  • Prevent differential settlement

  • Distribute wall load to columns

  • Reduce cracks in masonry walls

  • Improve seismic performance

In most residential buildings, plinth beams are compulsory for better structural performance.

Plinth Beam Steel Calculation Formula

The basic formula used in plinth beam steel calculation is:

Steel Weight (kg) = (D² / 162) × Length (m)

Where:
D = Diameter of bar in millimeters
162 = Constant value used for steel density calculation

This formula is applicable for all reinforcement bars including top bars, bottom bars and stirrups.

Step-by-Step Plinth Beam Steel Calculation

1️⃣ Top Reinforcement Bars

Top bars resist negative bending moments.

Example:

Beam Length = 6 m
Number of Top Bars = 2
Diameter = 12 mm

Unit weight = (12² / 162)
= 144 / 162
= 0.888 kg/m

Total weight = 2 × 6 × 0.888
= 10.66 kg

2️⃣ Bottom Reinforcement Bars

Bottom bars resist positive bending moments.

If 2 bottom bars of 12 mm diameter are used:

Total weight = 2 × 6 × 0.888
= 10.66 kg

3️⃣ Stirrup (Ring) Calculation

Stirrups resist shear forces and hold the main bars in position.

Stirrup cutting length formula:

Cutting Length = 2 × (Width + Depth – 2 × Cover) + Hook Length

Number of stirrups:

Number = Beam Length / Spacing

Then apply steel weight formula:

Stirrup Weight = No. × Cutting Length × (D² / 162)

Example of Plinth Beam Steel Calculation

Assume the following:

Beam Length = 10 m
Width = 230 mm
Depth = 300 mm
Cover = 25 mm
Top Bars = 3 (12mm, 8mm, 12mm)
Bottom Bars = 3 (12mm, 8mm, 12mm)
Stirrup Dia = 8 mm
Spacing = 150 mm

Using the plinth beam steel calculation formula:

  1. Calculate top bar weights individually

  2. Calculate bottom bar weights

  3. Find number of stirrups

  4. Calculate stirrup weight

  5. Add all values

Final Steel = Top Bars + Bottom Bars + Stirrups

You can easily calculate this using our free plinth beam steel calculator provided above.

Why Accurate Plinth Beam Steel Calculation is Important?

Accurate plinth beam steel calculation is important because:

  • It avoids steel wastage

  • It reduces construction cost

  • It helps in preparing BOQ

  • It ensures structural safety

  • It improves material planning

Incorrect reinforcement estimation can lead to structural issues or budget overruns.

Use Our Free Plinth Beam Steel Calculator

To simplify the process, we have developed a free online plinth beam steel calculator. This calculator automatically computes:

  • Top bar steel weight

  • Bottom bar steel weight

  • Stirrup steel weight

  • Wastage percentage

  • Grand total steel required

  • Downloadable calculation report

This tool is useful for site engineers, civil engineering students, contractors and quantity surveyors.

Conclusion

plinth beam steel calculation is a fundamental part of reinforced concrete construction. By using the standard formula (D² / 162) and proper stirrup calculation method, you can accurately determine the total steel requirement in a plinth beam.

For quick and error-free estimation, use our online plinth beam steel calculator and generate instant results with a downloadable report.
