CivilGuide.in is a professional platform dedicated to civil engineering students, site engineers, and construction professionals. We provide practical estimation guides, quantity surveying tutorials, material rate analysis, and easy-to-use civil engineering calculators designed for real construction work. Our mission is to simplify complex construction concepts into step-by-step practical learning resources that help engineers build strong technical foundations.

Why CivilGuide.in?

CivilGuide.in is built specifically for civil engineering students, diploma learners, site engineers, and construction professionals who want practical knowledge beyond textbooks. Our content focuses on real construction methods, quantity takeoff, rate analysis, and field-based engineering practices.

✔ Practical site-based learning
✔ Step-by-step quantity calculations
✔ Updated material rate insights
✔ Easy-to-use civil engineering calculators
✔ Designed for beginners & working professionals

Model Estimates for Building, Roads, Pipe and Slab culvert

Standard data book for Roads and building

Month-wise and year-wise BT and Emulsion

Month-wise and year-wise Diesel rates

Month-wise and year-wise Cement and Steel rate

AP Government Approved Building Plans & Designs

AP Standard Schedule of Rates (SSR) /RSSR

Civil Engineering Calculators

CivilGuide.in – Complete Civil Engineering Learning Platform

🔹 Our Mission

Our mission at CivilGuide.in is to simplify civil engineering concepts and make practical construction knowledge accessible to every student and working professional. We aim to bridge the gap between classroom theory and real-world site execution by providing step-by-step guides, estimation methods, and field-oriented engineering resources. Through clear explanations and practical examples, we help engineers build strong technical foundations and improve their confidence in real construction projects.

🔹 What We Provide

CivilGuide.in offers practical civil engineering resources designed for real-world application:

✔ Detailed quantity surveying and estimation guides
✔ Step-by-step rate analysis explanations
✔ Civil engineering calculators for quick site calculations
✔ Updated building material rate insights
✔ Diploma and semester question papers with answers
✔ Construction planning and execution tutorials

All content is written in simple language to ensure clarity for beginners while remaining useful for working professionals.

🔹 Who It Is For

CivilGuide.in is designed for:

✔ Diploma civil engineering students
✔ B.Tech civil engineering students
✔ Site engineers and supervisors
✔ Quantity surveyors and estimation engineers
✔ Contractors and small construction business owners

Whether you are preparing for exams, working on a live project, or improving your practical skills, CivilGuide.in provides structured and reliable civil engineering learning resources to support your professional growth.

Explore our latest practical civil engineering guides, diploma question papers, estimation tutorials, and construction insights designed for students and site engineers.

Latest Civil Engineering Articles

Homepage Posts

Tie Beam in Construction – Purpose, Size and Reinforcement Guide

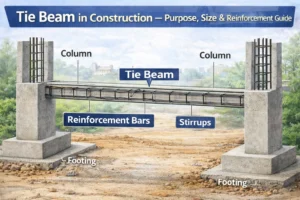

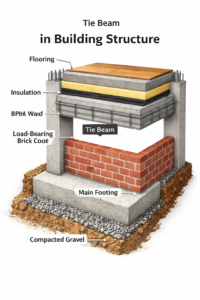

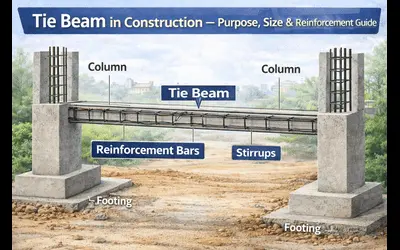

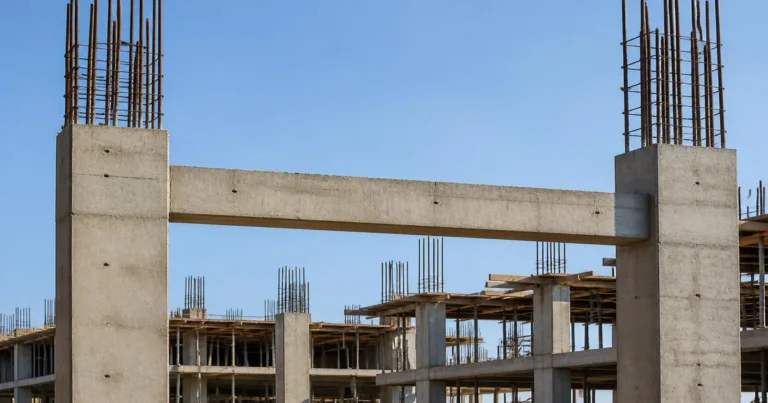

March 15, 2026Introduction Tie beam in construction is an important structural element used to connect columns and improve the stability of a building structure. It is a reinforced concrete beam provided between two columns to hold them together and prevent excessive movement. In many buildings, columns carry heavy loads from slabs, beams, and walls. If columns are not properly connected, they may move independently due to soil settlement, wind loads, or seismic forces. Tie beams help maintain structural alignment by tying the columns together. Tie beams are commonly used in residential buildings, multi-storey buildings, and structures built on weak soil conditions. They improve the overall rigidity of the structure and reduce the chances of structural cracks or settlement problems. Understanding tie beam design, size, reinforcement, and construction process is important for civil engineers, contractors, and house owners involved in building construction. Tie beam in building construction What is Tie Beam in Construction A tie beam is a horizontal reinforced concrete beam that connects two or more columns in a building structure. The main purpose of the tie beam is to maintain the structural integrity of the building by tying the columns together. Tie beams are usually provided above the foundation level or between columns at different heights of the building. Unlike plinth beams, tie beams generally do not support masonry walls directly. Instead, they mainly act as structural connectors that prevent columns from moving independently. Tie beams are particularly useful in buildings constructed on soft soil, where uneven settlement may occur. By connecting the columns together, tie beams help distribute loads evenly and maintain structural stability. Purpose of Tie Beam in Construction Tie beams serve several important purposes in building construction. Connects Columns The main function of a tie beam is to connect columns and keep them aligned. Prevents Differential Settlement Tie beams reduce the effect of uneven soil settlement by distributing loads between columns. Improves Structural Stability By tying columns together, tie beams improve the overall rigidity and stability of the structure. Reduces Column Buckling Tie beams help prevent columns from buckling under heavy loads. Improves Earthquake Resistance In earthquake-prone areas, tie beams help distribute lateral forces across the structure, improving seismic performance. Column design is essential for structural stability. Read our detailed guide on column size for 1, 2 and 3 storey buildings. Standard Tie Beam Size for Residential Buildings The size of a tie beam depends on the building design, column spacing, and structural load. Typical tie beam sizes used in residential construction include: Building TypeTypical Tie Beam SizeSingle floor house9 in × 9 inG+1 building9 in × 12 inMulti-storey building9 in × 15 in In most residential buildings: Width of tie beam = width of column or wallDepth of tie beam = 9 inches to 15 inches depending on design. The exact beam size should always be decided by a structural engineer. Factors Affecting Tie Beam Design The design and size of tie beams depend on several structural and site-related factors. Civil engineers carefully analyze these factors to ensure that the beam performs effectively in maintaining structural stability. Column Spacing The distance between columns plays an important role in determining the size of the tie beam. When columns are spaced farther apart, stronger beams with larger dimensions and more reinforcement may be required. Soil Condition Soil condition significantly influences the need for tie beams. In areas with weak or expansive soil, tie beams help reduce the effects of differential settlement between columns. Building Load The total load acting on the building, including slabs, beams, walls, and live loads, affects the tie beam design. Buildings with higher loads may require stronger beams. Number of Floors Multi-storey buildings generally require stronger tie beams compared to single-storey houses because of increased structural loads. Proper structural design ensures that tie beams maintain alignment between columns and provide adequate support to the building structure. Reinforcement Details of Tie Beam Tie Beam Reinforcement Proper reinforcement is necessary to ensure the strength and durability of tie beams. Main Reinforcement Bars Usually 4 steel bars are used in tie beams. Common bar diameters: 10 mm bars 12 mm bars 16 mm bars Typical arrangement: 2 bars at top2 bars at bottom Stirrups Stirrups hold the main reinforcement bars in position and resist shear forces. Typical stirrup details: 6 mm or 8 mm diameter Spacing: 150 mm to 200 mm Concrete Grade The commonly used concrete grade for tie beams in residential construction is: M20 concrete Proper reinforcement ensures that tie beams can safely resist bending and shear forces. Understanding plinth beams is important because they also connect structural elements at the ground level. Read our guide on plinth beam in construction to learn about its purpose and reinforcement details. Difference Between Tie Beam and Plinth Beam Many people confuse tie beams with plinth beams, but they serve different purposes. FeatureTie BeamPlinth BeamLocationBetween columnsAt plinth levelPurposeConnect columnsSupport masonry wallsLoad bearingUsually noYes Plinth beams support wall loads, while tie beams mainly connect columns and improve structural stability. Construction Process of Tie Beam The construction of tie beams typically follows these steps. 1. Column Construction Columns are constructed first up to the required level where the tie beam will be placed. 2. Formwork Installation Shuttering is installed around the beam area to support the concrete. 3. Reinforcement Placement Steel bars and stirrups are placed according to the structural design. 4. Concrete Pouring Concrete is poured into the formwork and compacted using a vibrator. 5. Curing Proper curing is carried out for 7 to 14 days to achieve the required strength. After curing, the formwork is removed and construction continues. Tie Beam in Building construction Practical Example of Tie Beam in House Construction Consider a residential building with columns spaced 12 feet apart. A typical tie beam may have: Width = 9 inchesDepth = 12 inches Reinforcement: 4 bars of 12 mm diameter 8 mm stirrups at 150 mm spacing This tie beam connects the columns and improves structural stability. Importance of Tie Beam in Earthquake Zones Tie beams play a crucial role in earthquake-resistant construction. During earthquakes, buildings experience horizontal forces that can cause structural movement. Tie beams help distribute these forces evenly across the structure. By connecting columns together, tie beams reduce the chances of column displacement or structural damage. In earthquake-prone areas, engineers often provide additional tie beams to improve building stability and safety. Advantages of Tie Beam in Building Construction Providing tie beams in buildings offers several advantages that improve structural performance and safety. Improves Structural Rigidity Tie beams increase the overall rigidity of the building structure by connecting columns and distributing loads evenly. Reduces Settlement Problems Uneven soil settlement can cause structural cracks. Tie beams help reduce this problem by balancing loads between columns. Improves Load Distribution Tie beams help distribute loads between structural elements, reducing excessive stress on individual columns. Enhances Earthquake Resistance In seismic areas, tie beams help distribute horizontal forces across the structure, improving earthquake resistance. Increases Building Durability By maintaining structural stability and reducing stress concentration, tie beams increase the life span of the building. Materials Used in Tie Beam Construction Tie beams are constructed using several building materials that contribute to their strength and durability. Cement Cement acts as the binding material in concrete. High-quality cement ensures strong bonding between aggregates and reinforcement steel. Sand Clean sand is used as a fine aggregate in the concrete mix. It improves workability and helps achieve the required concrete strength. Coarse Aggregate Crushed stone aggregates provide compressive strength and stability to the concrete. Steel Reinforcement Steel reinforcement bars resist tension forces in the beam. TMT bars such as Fe415 or Fe500 are commonly used in residential construction. Concrete Concrete is the primary material used in tie beam construction. Proper mix proportions and compaction ensure the required strength and durability. Using high-quality materials ensures that the tie beam performs effectively throughout the life of the building. Common Mistakes in Tie Beam Construction Some common mistakes during tie beam construction can reduce structural performance. Incorrect Reinforcement Providing insufficient reinforcement bars reduces beam strength. Poor Concrete Quality Low-quality concrete may weaken the beam. Improper Compaction Concrete must be properly vibrated to remove air voids. Lack of Proper Curing Concrete should be cured adequately to achieve full strength. Incorrect Beam Size Tie beam dimensions should always follow structural design. Avoiding these mistakes ensures safe and durable construction. For official structural design standards and building guidelines in India, you can refer to the Bureau of Indian Standards (BIS) website which publishes the National Building Code and structural design codes. FAQs About Tie Beam in Construction What is the purpose of a tie beam? The purpose of a tie beam is to connect columns and improve the stability of a building structure. Is tie beam necessary for houses? Yes, tie beams help prevent column movement and improve structural stability. What is the standard size of tie beam? Typical tie beam sizes range between 9×9 inches and 9×12 inches depending on structural design. What is the difference between tie beam and lintel beam? Tie beams connect columns, while lintel beams support walls above doors and windows. Which concrete grade is used for tie beam? Usually M20 grade concrete is used for residential construction. Engineering Toolbox provides useful engineering formulas, technical explanations, and construction material information used by civil engineers worldwide. Conclusion Tie beam in construction is an important structural element that connects columns and improves the stability of a building structure. By distributing loads and preventing independent column movement, tie beams help maintain structural alignment and reduce the risk of cracks or settlement. Proper design, reinforcement, and construction practices ensure that tie beams perform effectively throughout the life of the building. Civil engineers must always follow structural drawings and building standards when constructing tie beams. For residential buildings, tie beams play a key role in maintaining structural safety and durability. [...] Read more...

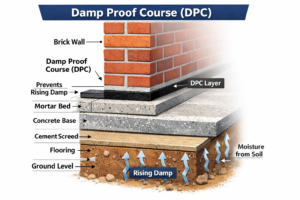

Damp Proof Course (DPC) in Construction – Types, Thickness and Materials

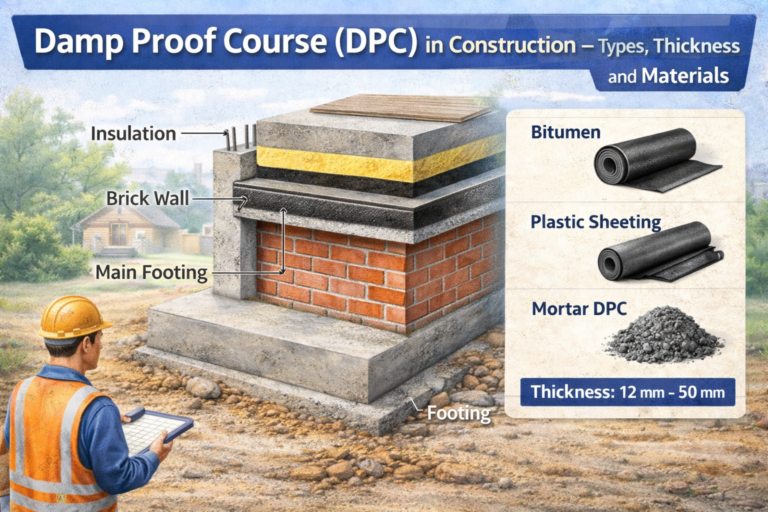

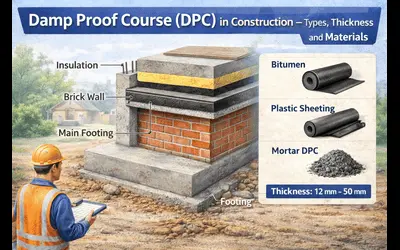

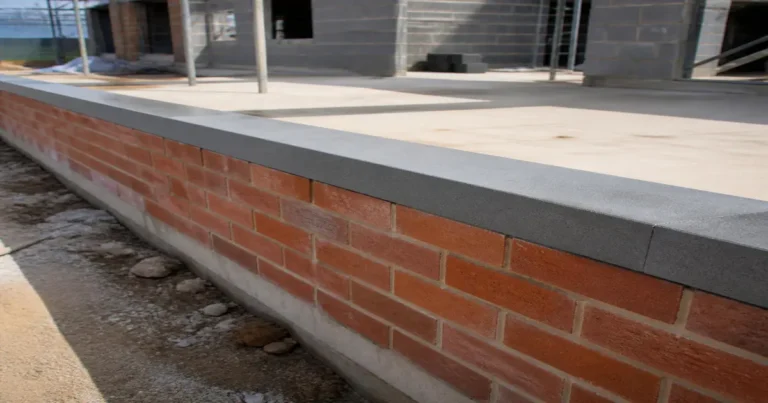

March 15, 2026Introduction Damp Proof Course (DPC) in construction is an important protective layer provided in buildings to prevent moisture from rising through walls and floors. Moisture from the ground can enter the building through capillary action in bricks, concrete, and mortar. If this moisture reaches the walls and floors, it can cause dampness, cracks, paint damage, and structural deterioration. To prevent this problem, a damp proof course is provided at specific levels in a building structure. It acts as a barrier that stops the upward movement of moisture from the soil. In residential buildings, DPC is usually provided at the plinth level above the ground level. Proper installation of DPC helps increase the durability of the building and protects interior finishes such as plaster, paint, and flooring. Understanding the types, materials, thickness, and importance of DPC is very important for civil engineers, contractors, and house owners involved in building construction. Damp Proof course What is Damp Proof Course in Construction Damp Proof Course is a layer of waterproof material placed in walls, floors, or foundations to prevent moisture from entering the building structure. Moisture present in the soil can travel upward through building materials due to capillary action. This phenomenon is known as rising damp. Without a damp proof course, the moisture can reach the interior walls and damage plaster, paint, and structural components. A properly constructed DPC blocks this moisture movement and keeps the building dry and safe. The damp proof course is typically installed horizontally at the plinth level of the building, which is the level between the ground and the floor of the structure. Purpose of Damp Proof Course in Building Construction The damp proof course plays a very important role in protecting buildings from moisture damage. Prevents Rising Damp The main purpose of DPC is to stop the upward movement of moisture from the ground into the walls. Protects Wall Finishes Moisture can damage paint, plaster, and decorative finishes on interior walls. DPC prevents such damage. Improves Building Durability Excess moisture can weaken building materials over time. Providing a DPC increases the life of the building. Prevents Mold and Fungus Damp walls create a suitable environment for mold and fungus growth, which can cause health problems. Maintains Structural Strength By preventing moisture penetration, DPC helps maintain the strength and stability of building materials. Before providing damp proof course, the plinth beam must be constructed properly. Read our detailed guide on plinth beam in construction to understand its purpose, size, and reinforcement details. DPC at plinth level Types of Damp Proof Course Used in Construction Different types of damp proof courses are used depending on the building design and site conditions. Flexible Damp Proof Course Flexible DPC materials can bend without cracking. These materials are commonly used in residential construction. Examples include: Bituminous sheets Plastic sheets Asphalt layers Flexible DPC materials are widely used because they are easy to install and provide good moisture resistance. Rigid Damp Proof Course Rigid DPC materials are strong and durable but cannot bend easily. Examples include: Rich cement concrete Stone slabs Rigid DPC is used in areas where high structural strength is required. Semi-Rigid Damp Proof Course Semi-rigid materials provide a balance between flexibility and strength. Examples include: Mastic asphalt Dense cement mortar layers These materials provide moderate flexibility while maintaining structural stability. Understanding foundation depth is important before constructing DPC layers. Learn more in our guide on minimum depth of foundation for residential buildings. Materials Used for Damp Proof Course Several materials are used to construct an effective damp proof course. Bitumen Bitumen is widely used because it is waterproof and flexible. It creates a strong moisture barrier. Cement Concrete Rich cement concrete mixed with waterproofing compounds is commonly used for DPC in residential buildings. Plastic Sheets Polythene sheets are sometimes used as a damp proof layer in floors and foundations. Stone Slabs Natural stone slabs can also be used as DPC in traditional construction. Asphalt Asphalt provides excellent waterproofing properties and is often used in damp proofing layers. The choice of material depends on cost, building design, and site conditions. Standard Thickness of Damp Proof Course The thickness of DPC depends on the material used and building design. Typical DPC thickness used in residential construction: MaterialTypical ThicknessCement concrete DPC25 mm to 50 mmBitumen layer10 mm to 20 mmStone slab DPC40 mm to 60 mm In most residential buildings, a 40 mm thick cement concrete layer with waterproofing compound is commonly used as DPC. The DPC layer is usually provided at the plinth level above the ground surface. DPC Layers Factors Affecting Damp Proof Course Design The design and thickness of the damp proof course depend on several factors related to the building structure and environmental conditions. Civil engineers consider these factors to ensure effective moisture protection. Soil Moisture Level The amount of moisture present in the soil around the building plays an important role in DPC design. Areas with high groundwater levels require stronger damp proofing layers. Climate Conditions In regions with heavy rainfall or humid climate, buildings are more prone to dampness. In such cases, additional waterproofing layers may be required. Type of Construction Material Different construction materials such as brick masonry, concrete blocks, or stone masonry may require different damp proofing methods. Building Usage Residential buildings, basements, and commercial buildings may require different levels of damp protection depending on their usage. Proper design of the damp proof course ensures long-term protection against moisture damage. Location of Damp Proof Course in Buildings DPC can be provided at different locations in a building to prevent moisture entry. Plinth Level The most common location of DPC is at the plinth level, just above the ground level. Floor Level DPC may also be provided below the floor to prevent moisture entering from the ground. Roof Level In some cases, damp proof layers are used on roofs to prevent water penetration. Around Openings DPC can also be provided around doors and windows in areas prone to moisture. Providing DPC at correct locations ensures complete moisture protection for the building. Construction Process of Damp Proof Course The construction of damp proof course generally involves the following steps. Surface Preparation The surface where DPC is to be installed must be cleaned and leveled properly. Application of Waterproof Layer A waterproof material such as bitumen or cement concrete with waterproof compound is applied. Proper Leveling The DPC layer should be laid evenly and continuously without gaps. Protection Layer In some cases, an additional protective layer is applied to prevent damage to the DPC. Curing If cement concrete is used, proper curing should be done to achieve the required strength. Advantages of Damp Proof Course in Buildings Providing a damp proof course offers several advantages for building durability and safety. Protects Interior Walls DPC prevents moisture from entering interior walls, which helps maintain the appearance of paint and plaster. Increases Life of Building Moisture can weaken construction materials over time. Damp proofing protects the building structure and increases its lifespan. Prevents Health Problems Damp walls often lead to mold and fungus growth, which can cause respiratory problems. DPC helps maintain a healthy indoor environment. Improves Structural Performance Dry building materials perform better than damp materials. Damp proof course helps maintain structural strength and stability. Reduces Maintenance Cost By preventing moisture damage, DPC reduces the need for frequent repairs and maintenance. Practical Example of Damp Proof Course in House Construction Consider a residential building where the plinth level is 2 feet above ground level. A common DPC arrangement may be: Material: Cement concrete with waterproof compoundThickness: 40 mm The DPC layer is provided above the plinth beam before starting brick masonry work. This prevents moisture from rising from the soil into the walls. Signs of Dampness in Buildings If damp proofing is not provided properly, several signs of dampness may appear in buildings. Peeling Paint Moisture entering the walls can cause paint layers to peel off. Damp Patches on Walls Dark damp patches may appear on walls, especially near the ground level. Efflorescence White powdery deposits called efflorescence may appear on brick or plaster surfaces. Musty Smell Damp walls often produce an unpleasant smell inside the building. Cracking of Plaster Excess moisture may weaken plaster and cause cracks. Identifying these signs early helps prevent further structural damage. Common Mistakes in Damp Proof Course Construction Some mistakes during DPC construction can reduce its effectiveness. Improper Thickness Providing a very thin DPC layer may not stop moisture effectively. Poor Quality Materials Low-quality materials reduce the waterproofing capacity. Discontinuous Layer DPC must be continuous throughout the wall. Gaps can allow moisture entry. Lack of Waterproof Compound Cement concrete used in DPC should include waterproofing chemicals. Damage During Construction DPC layers should be protected from damage during masonry work. Avoiding these mistakes ensures effective damp proofing in buildings. For official building standards and construction guidelines in India, you can refer to the Bureau of Indian Standards (BIS) website which publishes the National Building Code and structural design standards. FAQs About Damp Proof Course in Construction What is the purpose of DPC in construction? The purpose of DPC is to prevent moisture from rising from the ground into building walls and floors. Where is DPC provided in buildings? DPC is usually provided at the plinth level above the ground level. What is the standard thickness of DPC? Typical DPC thickness ranges between 25 mm to 50 mm depending on material. Which material is commonly used for DPC? Cement concrete with waterproof compound and bitumen layers are commonly used. Is DPC necessary for houses? Yes, DPC is essential to protect buildings from moisture damage and increase durability. Standard Thickness of DEngineering Toolbox provides useful engineering formulas, technical explanations, and construction material data used by civil engineers in structural design and building construction. Conclusion Damp Proof Course (DPC) in construction is an essential protective layer that prevents moisture from entering the building structure. Without proper damp proofing, rising moisture can damage walls, paint, plaster, and flooring. Providing DPC at the correct location using suitable materials ensures long-term protection against dampness. Civil engineers and builders must follow proper construction practices to ensure effective damp proofing in buildings. A properly constructed damp proof course helps maintain the strength, durability, and comfort of residential buildings. [...] Read more...

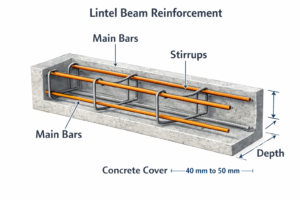

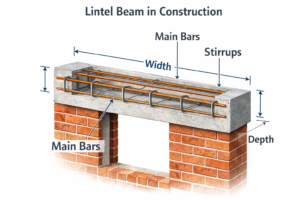

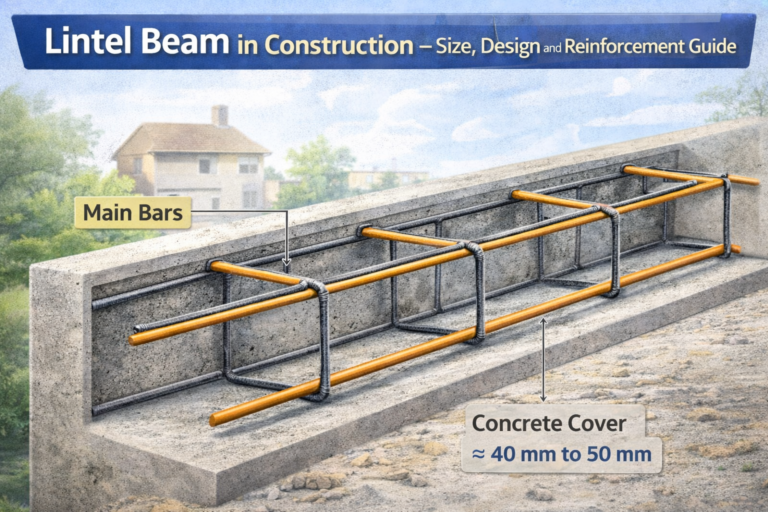

Lintel Beam in Construction – Size, Design and Reinforcement Guide

March 15, 2026Introduction Lintel beam in construction is an important structural element used above doors, windows, and other openings in a building. It is a horizontal reinforced concrete beam designed to support the load of the wall above the opening and transfer it safely to the surrounding walls or columns. When a door or window opening is provided in a wall, the continuous load path of the wall is interrupted. Without proper support, the wall above the opening may crack or collapse. To prevent this, a lintel beam is constructed across the opening. In residential buildings, reinforced cement concrete (RCC) lintel beams are commonly used because they provide good strength, durability, and stability. Proper design and construction of lintel beams help maintain the structural safety of the building. Understanding lintel beam size, reinforcement, construction process, and its importance in building construction is essential for civil engineers, contractors, and house owners. Lintel beam in construction What is Lintel Beam in Construction A lintel beam is a horizontal structural element constructed above openings such as doors, windows, and ventilators. Its main function is to carry the load of the wall above the opening and transfer it safely to the adjacent walls or columns. In most modern buildings, lintel beams are made of reinforced cement concrete (RCC). The beam is usually placed at the top of door and window openings. Lintel beams prevent the load of the masonry wall from directly acting on the door or window frame. Without a lintel beam, the wall may develop cracks or structural damage. In simple terms, a lintel beam acts as a bridge across openings in a wall. Purpose of Lintel Beam in Construction Lintel beams serve several important functions in building construction. Supports Wall Load The main function of a lintel beam is to support the load of the masonry wall above the opening. Prevents Cracks in Walls Without lintel beams, the wall above openings may develop cracks due to concentrated loads. Improves Structural Stability Lintel beams distribute the load evenly to the side walls or columns, improving the stability of the structure. Protects Door and Window Frames The beam prevents the load of the wall from directly acting on the door or window frame. Maintains Structural Alignment Lintel beams help maintain proper alignment and prevent deformation in masonry walls. Understanding plinth beams is important because they work together with lintel beams to support building walls. Read our detailed guide on plinth beam in construction to learn its purpose, size, and reinforcement details. Standard Lintel Beam Size for Residential Buildings The size of a lintel beam depends on the span of the opening and the load from the wall above. Typical lintel beam sizes used in residential buildings are: Opening WidthTypical Lintel Beam SizeUp to 3 feet9 in × 6 in3 to 5 feet9 in × 9 in5 to 7 feet9 in × 12 in In most residential houses: Width of lintel beam = thickness of wall (usually 9 inches) Depth of lintel beam typically ranges between 6 inches to 12 inches depending on structural design. The exact size should be decided by a structural engineer. Factors Affecting Lintel Beam Design The design and size of a lintel beam depend on several factors related to the building structure and load conditions. Civil engineers consider these factors before finalizing the beam dimensions and reinforcement. Width of Opening The width of the door or window opening plays a major role in determining the lintel beam size. Larger openings require stronger beams with more reinforcement to safely carry the load of the wall above. Wall Load The height and thickness of the wall above the lintel beam affect the load acting on the beam. A taller wall creates more load, which may require a deeper lintel beam. Building Type The type of building also influences lintel beam design. A single-storey house may require a smaller beam, while multi-storey buildings require stronger lintel beams to support additional loads. Material Used Different construction materials such as brick masonry, block masonry, or stone masonry may require different lintel beam designs. Proper structural design ensures that the lintel beam safely supports the load without excessive deflection or cracking. Reinforcement Details of Lintel Beam Lintel beam reinforcement Reinforcement is required in lintel beams to resist bending and tension forces. Typical reinforcement details include: Main Bars Usually 2 to 4 steel bars are used. Common bar sizes: 8 mm bars 10 mm bars 12 mm bars Example reinforcement: 2 bars at bottom2 bars at top (for larger spans) Stirrups Stirrups hold the reinforcement bars together. Typical stirrup size: 6 mm diameter Spacing: 150 mm to 200 mm Concrete Grade Generally used concrete grade: M20 concrete Proper reinforcement ensures that the lintel beam can safely carry the wall load. If you want to understand the correct column dimensions used in houses, check our detailed guide on column size for 1, 2 and 3 storey buildings. Types of Lintel Beams Used in Construction Different types of lintels are used depending on structural requirements. RCC Lintel Reinforced concrete lintels are the most commonly used type in modern construction because they provide high strength and durability. Brick Lintel Brick lintels are made using brick masonry and mortar. They are used only for small openings. Steel Lintel Steel lintels use steel sections such as angles or channels to support the wall load. Stone Lintel Stone lintels are used in traditional buildings where stone blocks are available. Among these, RCC lintel beams are the most widely used in residential buildings. LIntel beam above windows and doors Importance of Lintel Beam in Building Construction Lintel beams play a significant role in maintaining the structural integrity of buildings. When openings such as doors and windows are provided in walls, the continuous load path of the wall is interrupted. Lintel beams help restore this load path by safely transferring the load to the surrounding walls. Without lintel beams, the wall above the opening may experience stress concentration, which can lead to cracks or even structural failure. Lintel beams distribute the load evenly and reduce the chances of damage. Lintel beams also improve the durability of door and window openings by protecting frames from excessive pressure. In modern construction, RCC lintel beams are widely used because they provide excellent strength and long-term performance. By ensuring proper support above openings, lintel beams contribute to the overall stability and safety of the building. Construction Process of Lintel Beam The construction of lintel beams generally follows these steps. 1. Marking of Opening The door or window opening is marked in the masonry wall. 2. Formwork Installation Shuttering is installed above the opening to support the concrete. 3. Reinforcement Placement Steel reinforcement bars and stirrups are placed according to the structural design. 4. Concrete Pouring Concrete is poured into the formwork and compacted properly using a vibrator. 5. Curing Proper curing is done for at least 7 to 14 days to achieve the required strength. After curing, the formwork is removed and masonry work continues above the lintel beam. Practical Example of Lintel Beam in House Construction Consider a residential house where a window opening width is 4 feet. Typical lintel beam size may be: Width = 9 inchesDepth = 9 inches Reinforcement: 2 bars of 10 mm diameter at bottom 2 bars of 10 mm diameter at top 6 mm stirrups at 150 mm spacing This lintel beam safely transfers the load of the wall above the window opening. Difference Between Lintel Beam and Plinth Beam Many people confuse lintel beams and plinth beams, but they are different structural elements. FeatureLintel BeamPlinth BeamLocationAbove doors and windowsAt plinth levelFunctionSupports wall above openingsSupports wall load at ground levelLoad transferTo walls or columnsTo foundation Both beams play important roles in building construction. Materials Used in Lintel Beam Construction Several construction materials are used to construct lintel beams, and the quality of these materials directly affects the strength of the beam. Cement Cement acts as the binding material in concrete. High-quality cement ensures strong bonding between aggregates and reinforcement steel. Sand Clean sand is used as fine aggregate in concrete. It improves workability and helps achieve proper concrete strength. Coarse Aggregate Crushed stone aggregates provide compressive strength to the concrete mix. Steel Reinforcement Steel reinforcement bars resist tension forces in the beam. TMT bars such as Fe415 and Fe500 are commonly used in residential buildings. Concrete Concrete is the main material used in lintel beam construction. Proper mix proportions and compaction ensure the required strength and durability. Using good-quality materials ensures that the lintel beam performs effectively throughout the life of the building. Common Mistakes in Lintel Beam Construction Some common mistakes during lintel beam construction can cause structural problems. Incorrect Beam Size Using a smaller beam size may not safely carry the wall load. Insufficient Reinforcement Providing fewer reinforcement bars reduces beam strength. Poor Concrete Quality Low-quality concrete reduces durability. Improper Compaction Concrete must be properly vibrated to remove air voids. Lack of Proper Curing Without proper curing, concrete cannot achieve full strength. Avoiding these mistakes ensures safe and durable lintel beam construction. For official structural design standards and building guidelines in India, you can refer to the Bureau of Indian Standards (BIS) website, which publishes the National Building Code and structural design codes used in construction. FAQs About Lintel Beam in Construction What is the purpose of a lintel beam? A lintel beam supports the load of the wall above doors, windows, and other openings. Is lintel beam necessary for doors and windows? Yes, lintel beams are necessary to prevent cracks and structural damage above openings. What is the standard lintel beam size? Typical lintel beam sizes range from 9×6 inches to 9×12 inches depending on the span. Which concrete grade is used for lintel beam? Usually M20 grade concrete is used in residential construction. What is the difference between lintel beam and tie beam? Lintel beams support openings in walls, while tie beams connect columns to improve structural stability. Engineering Toolbox provides useful engineering formulas and technical explanations related to structural engineering, materials, and construction practices used by civil engineers. Conclusion Lintel beam in construction is an essential structural component that supports the load of masonry walls above doors and windows. It prevents cracks, improves structural stability, and protects door and window frames from excessive load. Proper lintel beam design, reinforcement, and construction practices ensure long-term durability and safety of the building. Civil engineers should always follow structural drawings and building codes when constructing lintel beams. For residential buildings, a properly constructed lintel beam ensures strong and stable wall openings. [...] Read more...
